XM 18 Single Circuit Incubator Controller – Original

XM 18 Single Circuit Incubator Controller

Main Technical Index:

• * 1. Temperature display range: 0 ~ 99.9 C
• * 2. Temperature measurement accuracy: ± 0.1 C
• * 3. Humidity display range: 0-99% RH
• * 4. Humidity control accuracy: ± 3% RH
• * 5. Output path: 7 Road ( over-temperature, temperature control, insufficient temperature, egg-left turning, egg right-turning, humidity control, alarm )
• * 6. The maximum output load current: temperature control, insufficient temperature <= 8A/AC 220V, over-temperature,egg-left turning, egg right-turning, humidity control, alarm<= 1A /AC 220V
• * 7. Number of egg-turning : Maximum record 999 times.
• * 8. Cycle of egg-turning: from 0 to 999 minutes (factory set at 90 minutes)
• * 9. Turn the eggs time: 0 to 999 seconds (factory set at 180 seconds)
• * 10. Ventilation cycle : 0-999 minutes (factory set at 120 minutes)
• * 11. Ventilation time: 0-999 seconds (Factory set at 30 seconds)
• * 12. The measuring line length: 1.5 meters
• Working conditions:
• * 1. Power Supply : AC 160V ~ 240V, 50Hz or AC 110V ( choose the one you need )
• * 2. Relative humidity: less than 85%
• * 3. Ambient temperature: -10 ~ 60 C
• Package content:

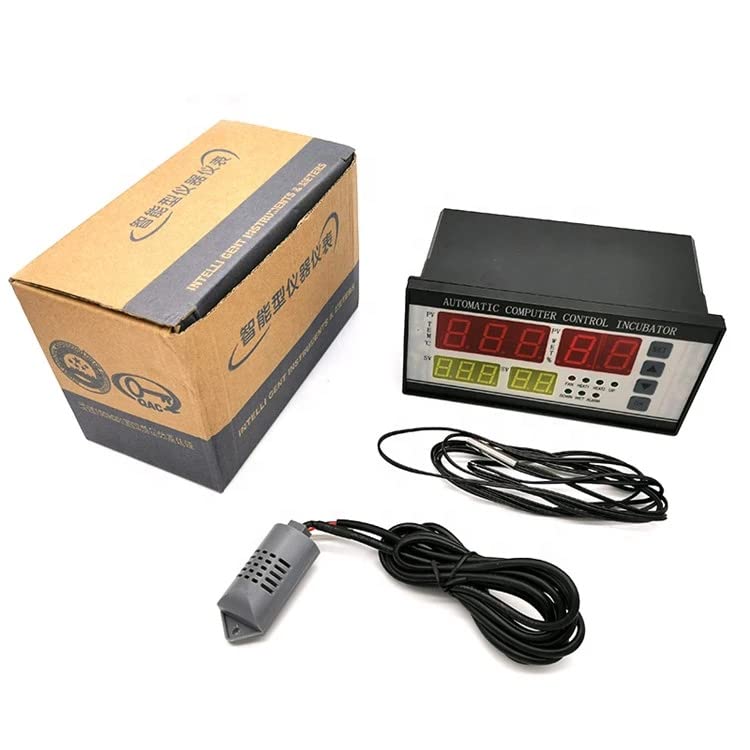

• * 1 x XM-18 Incubator Controller Thermostat Hygrostat
• * 1 x Temperature sensor
• * 1 x Humidity sensor * 1 x Engligh manual
